Medium Voltage(12kV Metering Panel)

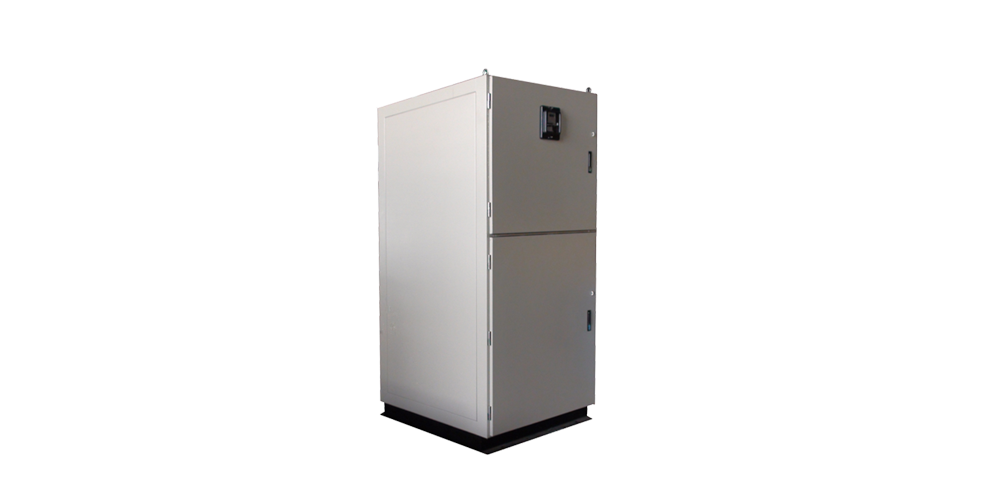

12kV Metering Panel
Enclosure And Structure
- Standard Dimensions : 2200 (H) x 900 (W)
- Metal Sheet : EGI ( JFE , Japan)
- Body Part thickness : 2mm
- Door thickness : 2mm
- Internal Partitions : IP 2X
- Degree Of Protection Enclosure : IP 3X
- Mounting Method : Floor Standing ( Indoor Use )
- Cable Entry : Bottom entry
Busbar And Connecting Conductor
- Busbar material : Tin Coated ( Oriental Copper, Thailand)
- Busbar Joints : Numerical
- Rated input : Tin plating
Painting & Color
- External enclosure surfaces are first cleaned and pretreated for rust
- Enclosure Color Code : Pebble Gray(RAL 7032), Light Gray(RAL 7305)
- Epoxy Paint ( Indoor Use ) : Jotun , Norway
